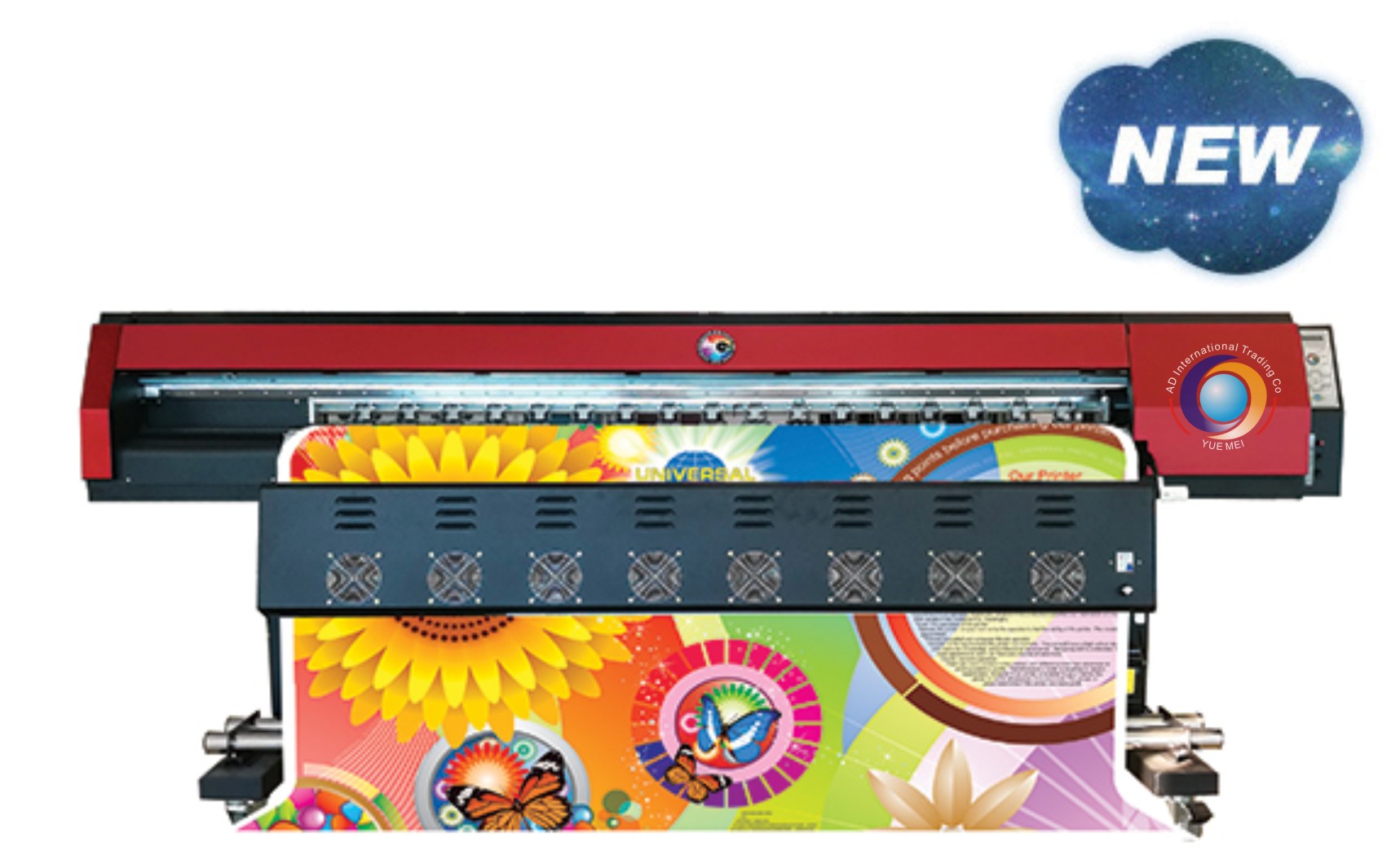

MODEL

UD-18E2AG

Printhead

Epson XP600

Number of printhead

2 Heads

Maximum print width

1,800mm

Print Speed (m2/h)

Print mode

Output(m2/h)

RoughDraft           2Pass

79

Draft                3Pass

51

Standard             4Pass

38

Quality              6Pass

27

High Quality          8Pass

16

Backlit              12Pass

11

Ink

Type:

Water based / Eco Solvent Ink

Color :

4 Color (C,M,Y,K)

Capacity:

1L per Main Tank of Each Color

Ink Supply System

Auto Ink Supply System

Media Width

Maximum 1,880mm

Media Type

Vinyl, Flex, Back-lit Film, etc.

Auto Media Feeding System

Equipped (Max. Media Weight 25kg)

Auto Cleaning System

Anti-clogged Flash Function & Capping System

Pre-heating & Drying System

Equipped

Clamp

Equipped

Print Interface

USB 2.0

Printhead Height

1.5 to 6 mm from Media

RIP Software

Ultraprint, Maintop, Photoprint

Input Power

AC 220V, 50Hz/60Hz

Machine Dimension / N.W

L2,960 x W1228 x H840mm / 251KG

Package Dimension / G.W

L3,190 x W1,100 x H845mm / 428KG
