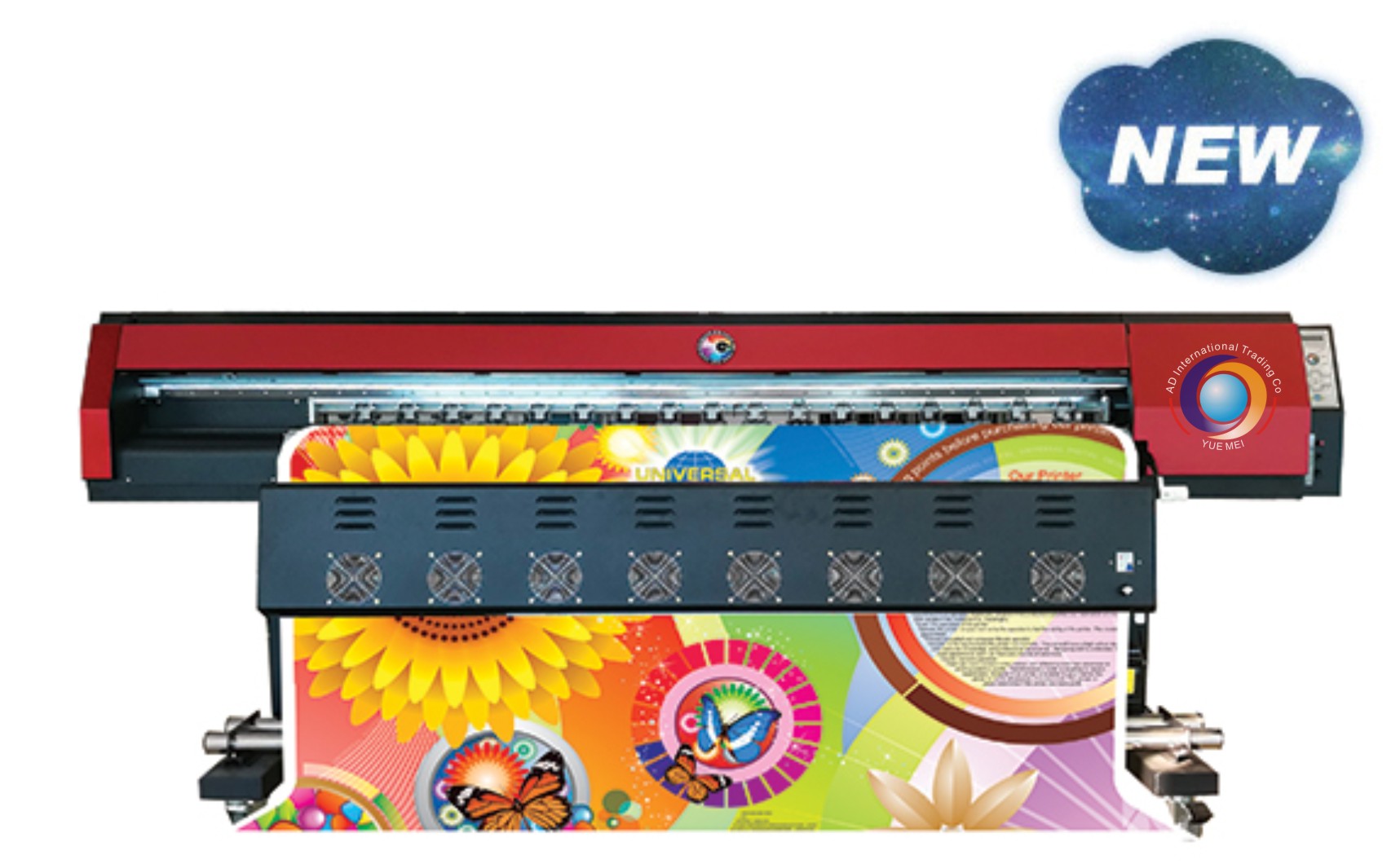

MODEL

UD-18G2AG

Printhead

Epson 5113

Number of printhead

2 Heads

Maximum print width

1,800mm

Print Speed (m2/h)

Print mode

Output(m2/h)

RoughDraft           2Pass

79

Draft                3Pass

51

Standard             4Pass

38

Quality              6Pass

27

High Quality          8Pass

16

Backlit              12Pass

11

Ink

Type:

Water based / Eco Solvent Ink

Color :

4 Color (C,M,Y,K)

Capacity:

1L per Main Tank of Each Color

Ink Supply System

Auto Ink Supply System

Media Width

Maximum 1,880mm

Media Type

PP, Heat transfer paper, etc.

Auto Media Feeding System

Equipped (Max. Media Weight 25kg)

Auto Cleaning System

Anti-clogged Flash Function & Capping System

Pre-heating & Drying System

Equipped

Clamp

Equipped

Print Interface

USB 2.0

Printhead Height

1.5 to 6 mm from Media

RIP Software

Ultraprint, Maintop, Photoprint

Input Power

AC 220V, 50Hz/60Hz

Machine Dimension / N.W

L2,960 x W1228 x H840mm / 251KG

Package Dimension / G.W

L3,190 x W1,100 x H845mm / 428KG
