MODEL

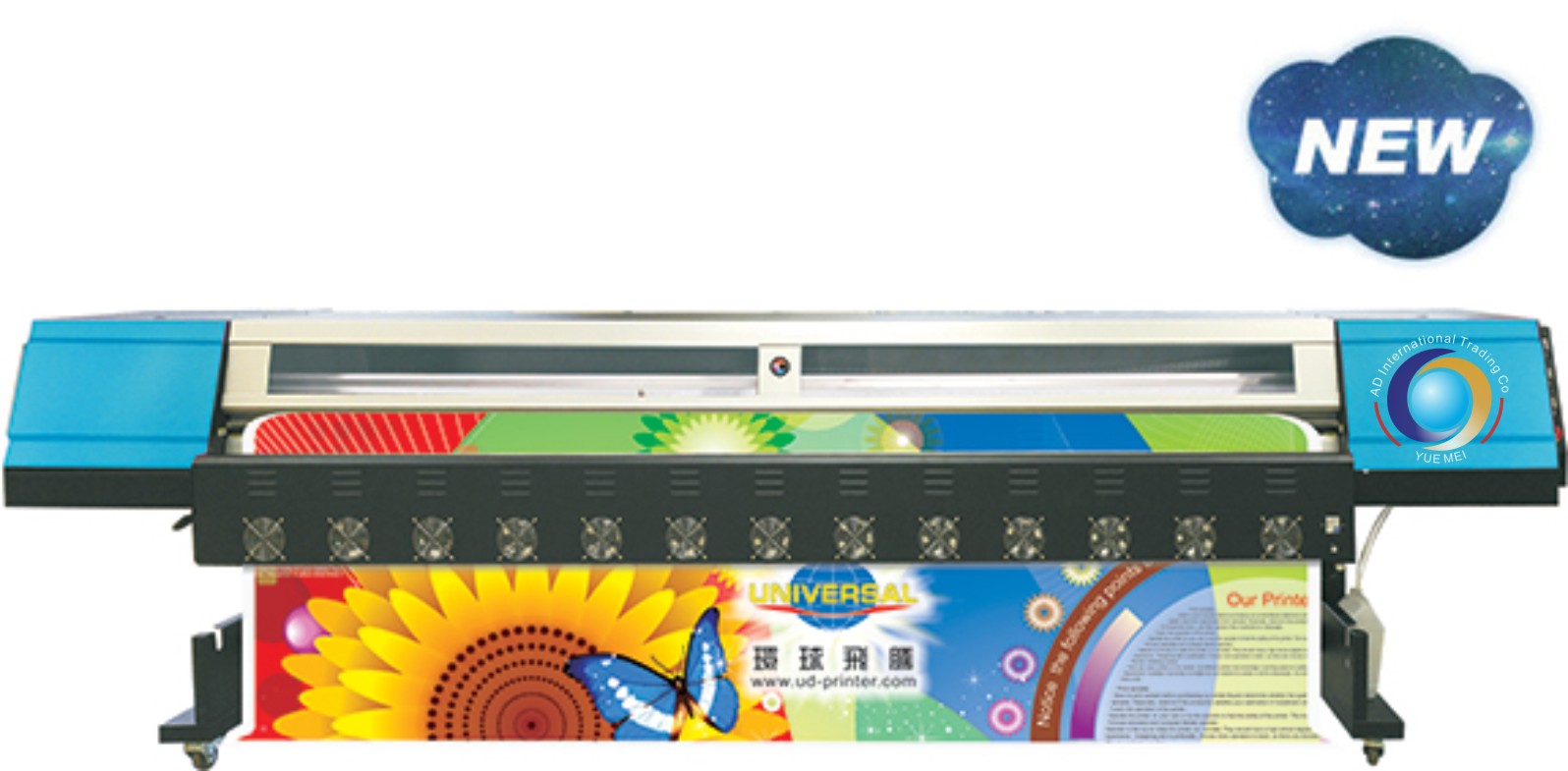

UD-3218LE

Printhead

Epson DX5

Number of printhead

4 Heads

Maximum print width

3,200mm

Print Speed (m2/h)

Print mode

Output(m2/h)

RoughDraft           2Pass

122

Draft                3Pass

99

Standard             4Pass

60

Quality              6Pass

46

High Quality          8Pass

32

Backlit              12Pass

23

Ink

Type:

Water based / Dye Sublimation Ink

Color :

4 Color (C,M,Y,K)

Capacity:

1L per Main Tank of Each Color

Ink Supply System

Auto Ink Supply System

Media Width

Maximum 3,300mm

Media Type

Vinyl, Flex, Back-lit Film, etc.

Auto Media Feeding System

Equipped (Max. Media Weight 80kg)

Auto Cleaning System

Anti-clogged Flash Function & Capping System

Pre-heating & Drying System

Equipped

Clamp

Equipped

Print Interface

USB 3.0

Printhead Height

1.5 to 10 mm from Media

RIP Software

Ultraprint, Maintop, Photoprint

Input Power

AC 220V, 50Hz/60Hz

Machine Dimension / N.W

L4,480 x W920 x H1,225mm / 390KG

Package Dimension / G.W

L4,830 x W1,150 x H970mm / 633KG
