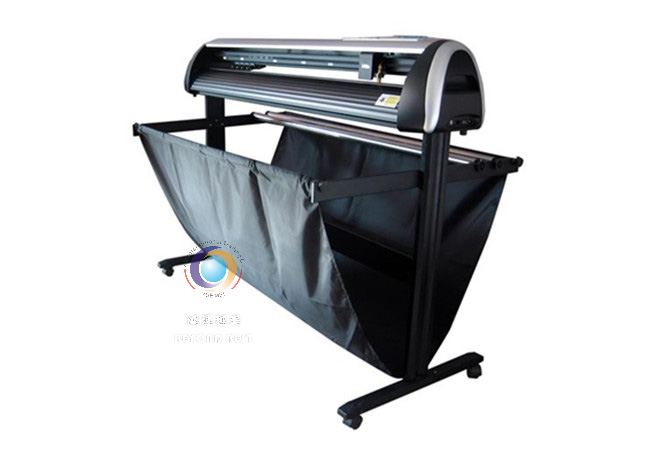

LED Cutting Machine
Product Features
 |
Adopts high-precision steel axes ,can prevent slipping while cutting long materials
|
|
independent double Base holder
|
 |
10 silica gel buttons, easy-to-use and durable
|
|
USB interface to connection computer also support hot-plug
|
 |
High Speed Arithmetic Microprocessor,stable processing, low noise operation yet without zigzag while cutting
|
 |
User-friendly Design , allows to adjust cutting force and working speed while
|
 |
4*8 high resolution LCD backlight display , suitable for different work surroundings
|
 |
Supprot Windows xp/vista/2008/ win7 32 bits/64 bits Mac system
|
 |
Unique count function, data retention are performed even power cut-off
|
 |
LED Positioning,Contour cut Function (Optional)
|
Specifications
|
Model
|
48
|
|
Acceptable Media Width
|
1300mm
|
|
Max.Cutting Width
|
1200mm/48Inch
|
|
Operating system
|
Windows2000/XP/2003/win7/ 2003 x32/win7 x64 /Mac OSX10.2.8 & above version
|
|
Interface
|
RS232C,USB
|
|
Control Panel
|
10Silica gel buttons
|
|
Driver Digital
|
Digital DC, Step Motor, Micro-step Driver
|
|
Display
|
4*8 High Resolution LCD
|
|
Drawing Instruction
|
HP-GL, DMPL
|
|
Max. Cutting Speed
|
600mm/s
|
|
Max. Cutting Thickness
|
1mm
|
|
Pressure
|
50g~800g Adjustable
|
|
Mechanical Precision(mm)
|
0.025mm
|
|
Repeat Accuracy
|
< ±0.1mm
|
|
Power Supply
|
AC90~240V/50Hz~60Hz
|
|
Positioning Mode
|
Bounded System,Random Original Point Setting
|
|
Work Mode
|
Roller
|
|
Operating Environment
|
Temperature:+5℃-35℃,Relative Humidity:30%-70%
|
|
Support Mode
|
Desktop / Stand (Optional)
|
|
Net weight
|
1530*265*270 / 35kg
|
|
Gross weight
|
1595*380*430 / 37kg
|
