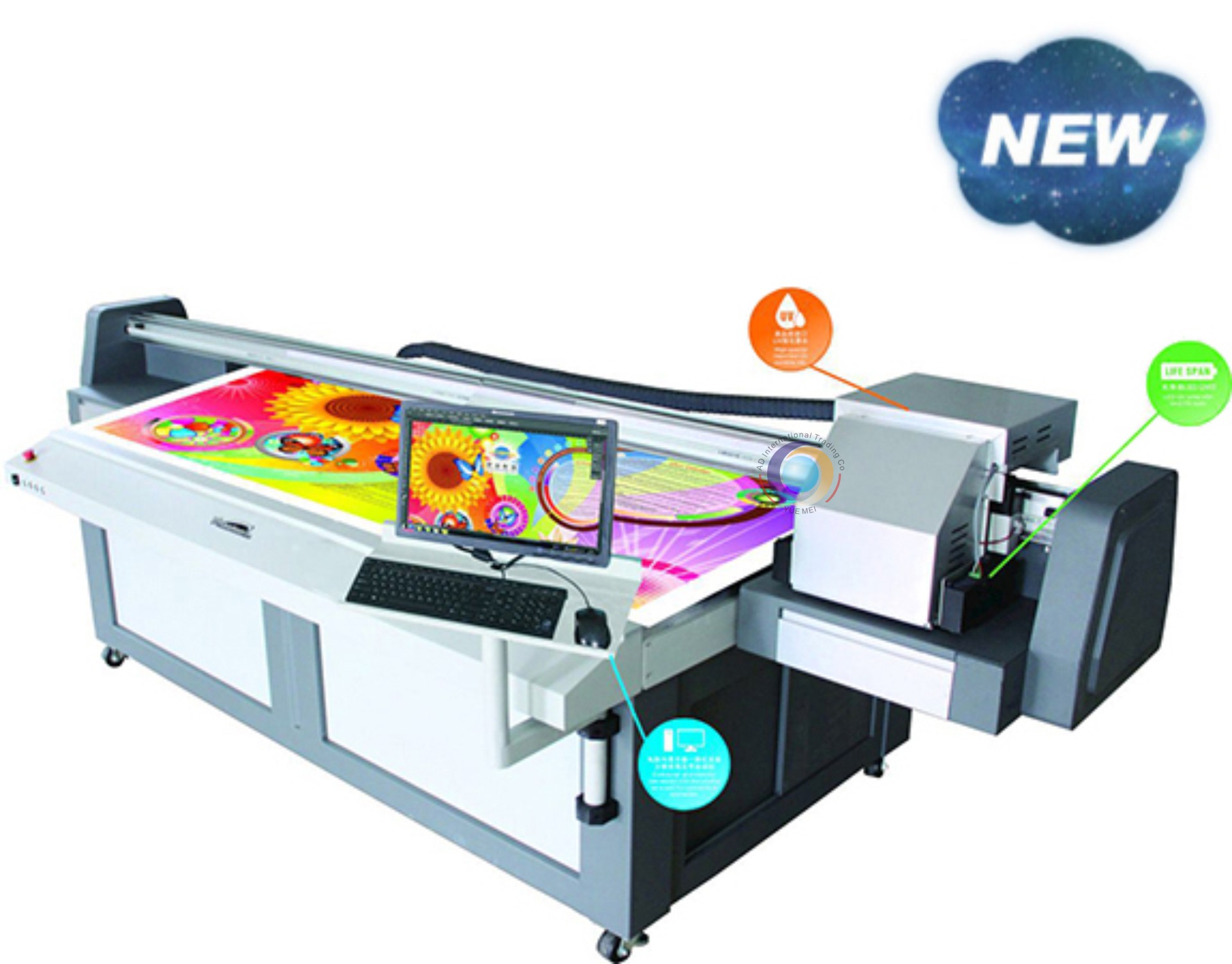

MODEL

UD-2598AFW

Printhead

SPT-1024GS

Maximum print width

6+2

Print Speed (m2/h)

Print mode

Output(m2/h)

Draft

6Pass

17

Standard

8Pass

12

Quality

12Pass

8

High Quality

16Pass

6

Maximum print width

2,500mm x 1,260mm

Media Width

2,500 x 1,260mm

Ink

Type

UV Ink

Color

6+1 colors (C M Y K Lc Km + W)

Capacity

1L per Main Tank of Each Color

Ink Supply System

Auto Ink Supply System

Media Type

PS Board, KT Board, PVC Foam Board, Acrylic, Aluminum, Glass, etc

Auto Cleaning System

Auto Cleaning System

Printhead Height

1 to 100 mm from Media

Print Interface

USB 3.0

RIP Software

Maintop, Ultraprint, Photoprint, Onyx

Input Power

AC 220V/230V, 50Hz/60Hz

Printer Power

980W

Vacuum Power

4000W

Machine Dimension / N.W

L3871 x W2165 x H1190mm / 525Kg

Package Dimension / G.W

L4150 x W2050 x H1550mm / 955Kg
