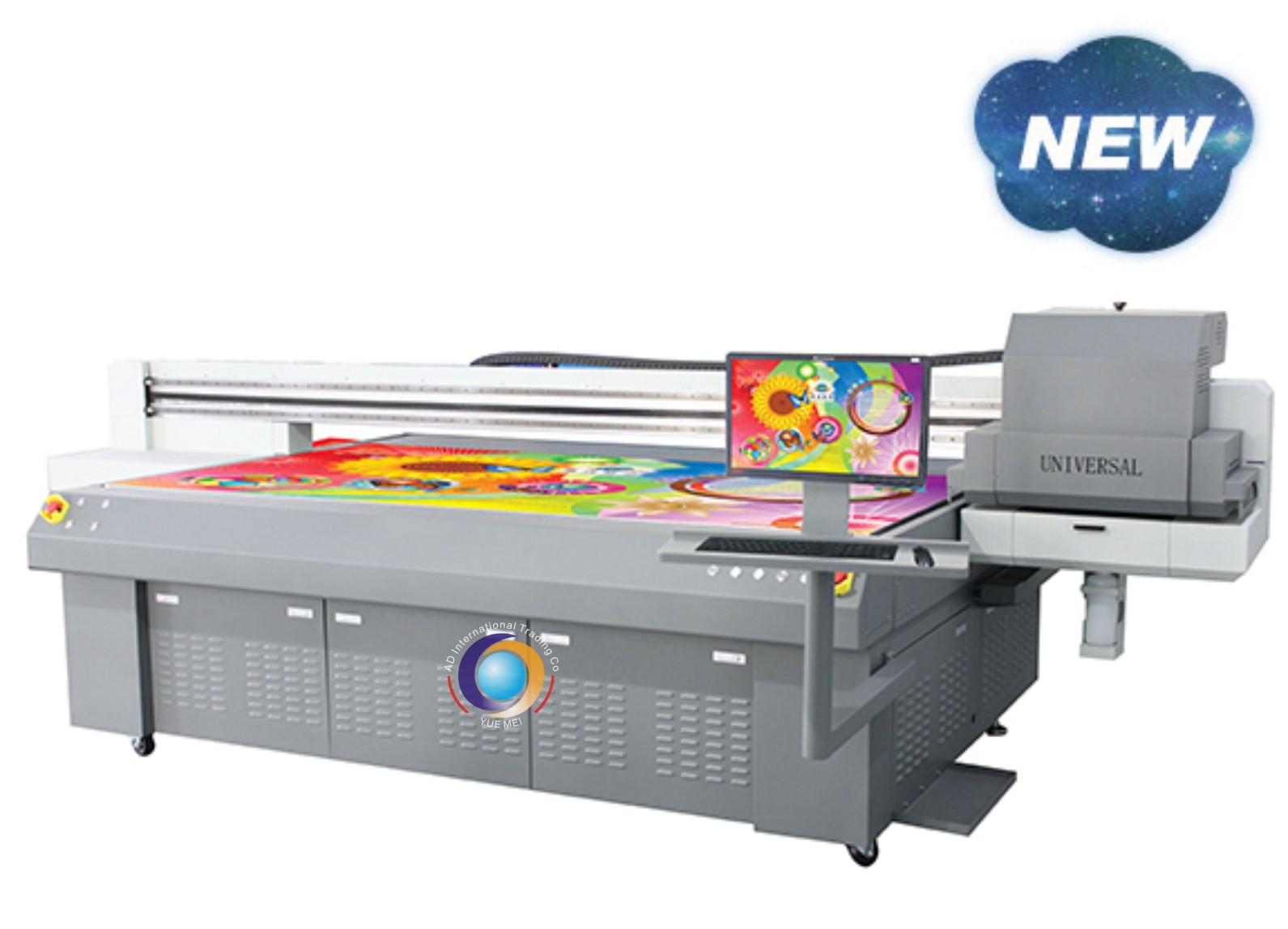

MODEL

UD-2598AJW

Printhead

SPT-1024GS

Number of printhead

6+2

Maximum print width

2,500mm x 1,250mm

Print Speed (m2/h)

Print mode

Output(m2/h)

Draft                6Pass

17

Standard             8Pass

12

Quality             12Pass

8

High Quality         16Pass

6

Ink

Type:

UV Ink

Color :

6+1 colors (C M Y K Lc Km + W)

Capacity:

1L per Main Tank of Each Color

Ink Supply System

Auto Ink Supply System

Media Width

2,500 x 1,250mm

Media Type

PS Board, KT Board, PVC Foam Board, Acrylic, Aluminum, Glass, etc

Auto Cleaning System

Auto Cleaning System

Print Interface

USB 3.0

Printhead Height

1 to 100 mm from Media

RIP Software

Maintop, Ultraprint, Photoprint, Onyx

Input Power

AC 220V/230V, 50Hz/60Hz

Printer Power

4200W

Vacumm Power

1500W

Machine Dimension / N.W

L3871 x W2165 x H1190mm / 825Kg

Package Dimension / G.W

L4350 x W2210 x H1680mm / 1275Kg
