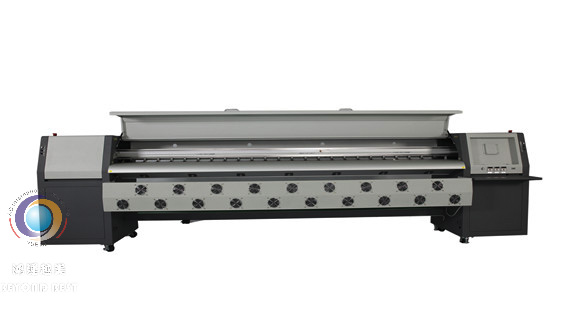

UD-3278K（STOPPED）
Phaeton solvent printer
|
Model |
UD-3278K |
|
|
Printhead |
SPT510-50PL |
|
|
SII Printek Inc. |
||
|
Number of printhead |
8 Heads |
|
|
Maximum print width |
3,200mm |
|
|
Print Speed (m2/h) |
Print mode |
Standard output(m2/h) |
|
D |
2 PASS 157 |
|
|
S |
3 PASS 109 |
|
|
Q |
4 PASS 85 |
|
|
HQ |
4 PASS 70 |
|
|
C |
6 PASS 53 |
|
|
Ink |
Type: |
Solvent Ink / ECO Solvent Ink |
|
Color : |
Double 4 Color (C,M,Y,K) |
|
|
Capacity: |
1L or 5L per Main Tank of Each Color |
|
|
Ink Supply System |
Low Ink Dectector, Auto or Manual Ink Supply System |
|
|
Media Width |
Maximum 3,300mm |
|
|
Media Type |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc. |
|
|
Auto Media Feeding System |
Equipped (Max. Media Weight 80kg) |
|
|
Auto Cleaning System |
Individual Positive Pressure Cleaning |
|
|
Anti-clogged Flash Function & Capping System |
||
|
Pre-heating & Drying System |
Equipped |
|
|
Clamp |
Equipped |
|
|
Print Interface |
USB 2.0 |
|
|
Printhead Height |
2 to 6 mm from Media |
|
|
RIP Software |
Maintop, Ultraprint, Photoprint, Topaz, Wasatch, Caldera |
|
|
Input Power |
AC 220V, 50Hz/60Hz |
|
|
Machine Dimension / N.W |
L4, 786 x W1,000 x H1,350mm / 685KG |
|
|
Package Dimension / G.W |
L4, 980 x W1,400 x H1,640mm / 968KG |
|
The Speed data is different in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different along after change printheads. When printing with serveal printers at the same time, printing colors may have difference due to a difference exist in every single printer.
