UD-32712X（STOPPED）
Phaeton solvent printer

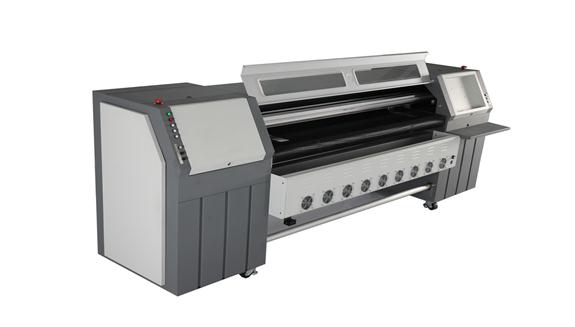

Phaeton Printer UD-32712X
Full aluminum platform / X, Y axis AC servo motors
Bearing rail, stable and long durability
Electric drive pinch rooler
Plastic Bar Pulling Material
Individual positive pressure cleaning
| Model | UD-32712X | |
|---|---|---|
| Printhead | SPT510-50PL | |
| Number of printhead | 12 Heads | |
| Maximum print width | 3,200mm | |
| Print Speed (m2/h) | Print mode | Standard output(m2/h) |
| D | 2 PASS 282 | |
| S | 3 PASS 200 | |
| Q | 4 PASS 153 | |
| HQ | 4 PASS 120 | |
| C | 6 PASS 105 | |
| BL | 8 PASS 61 | |
| Ink | Type: | ECO Solvent Ink/Solvent Ink |
| Color : | 4 Color (C,M,Y,K) | |
| Capacity: | 5L per Main Tank of Each Color | |
| Ink Supply System | Low Ink Detector, Auto or Manual Ink Supply System | |
| Media Width | Maximum 3,300mm | |
| Model | UD-32712X |
|---|---|
| Media Type | Vinyl, Window Flim, Polyester, Flex, Back-lit Film, etc. |
| Auto Media Feeding System | Equipped (Max. Media Weight 80kg) |
| Auto Cleaning System | Individual Positive Pressure Cleaning, Anti-clogged Flash Function & capping System |
| Pre-heating & Drying System | Equipped |
| Clamp | Equipped |
| Print Interface | USB 2.0 |
| Printhead Height | 2 to 6 mm from Media |
| RIP Software | Ultraprint, Maintop, Photoprint |
| Input Power | AC 200V, 50Hz/60Hz |
| Operating Environment | Humidity: 20-80% (Recommend 40-60%) |
| Temperature: 15-35°C | |
| Machine Dimension / N.W | L4,850 x W1,070 x H1,585mm / 710KG |
| Package Dimension / G.W | L4,950 x W1,190 x H1,875mm / 1053KG |
The Speed data varies in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different with the chnage of printheads.
When printing with serveal printers at the same time, difference in printing colors may exist due to every single printer may have tolerance.
