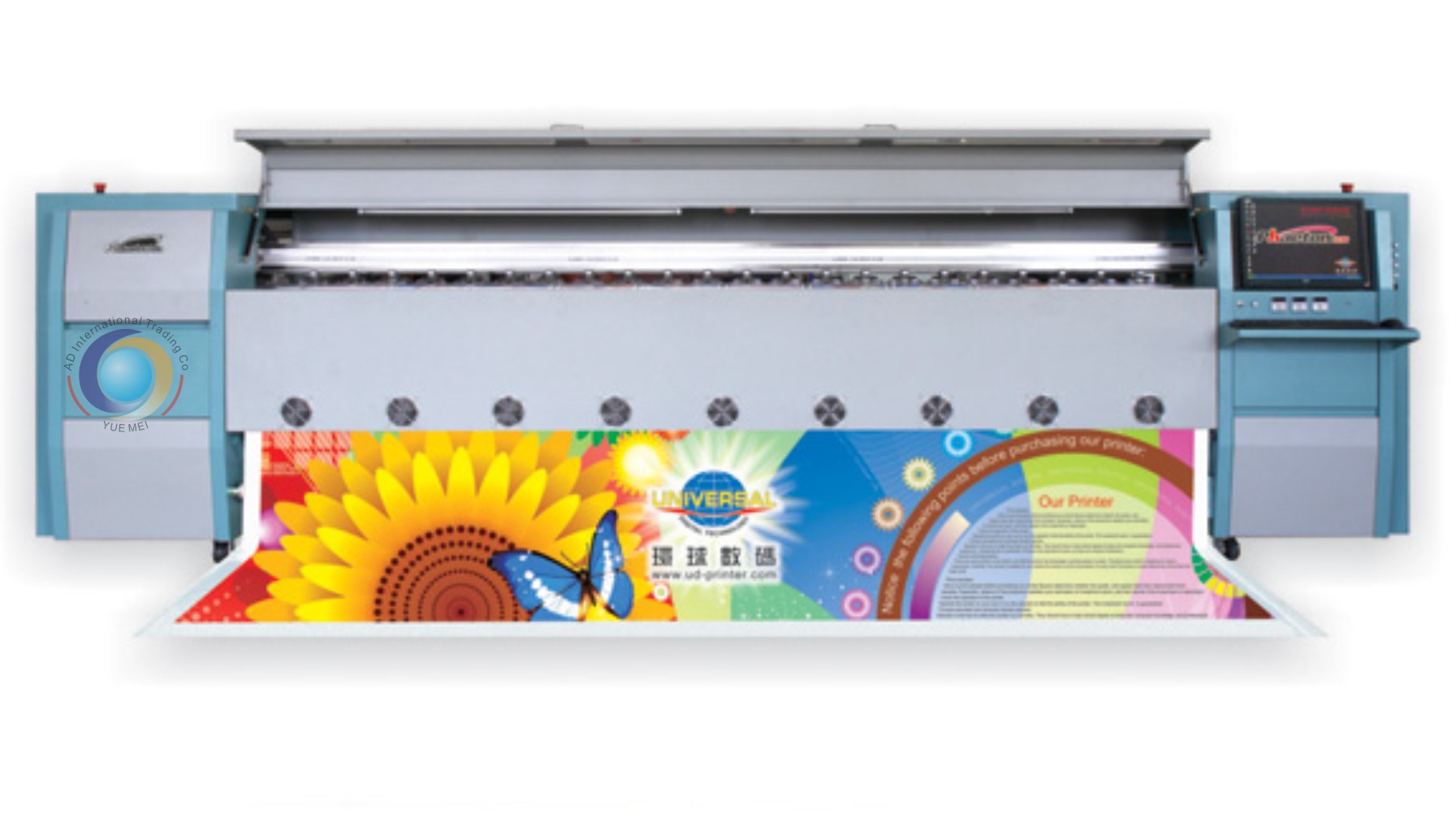

UD-3206E(STOPPED)
phaeton solvent printer
MODEL |
UD-3206E |
|||
Printhead |
SPT510-35PL |
|||
Maximum print width |
6Heads |
|||
Print Speed (m2/h) |
Print mode |
Output(m2/h) |
||
Draft |
4Pass |
39 |
||
Standard |
6Pass |
27 |
||
Quality |
6Pass |
18 |
||
High Quality |
8Pass |
14 |
||
Compensatory |
|
|
||
Maximum print width |
3,200mm |
|||
Media Width |
3,300mm |
|||
Ink |
Type |
Solvent Ink / ECO Solvent Ink |
||
Color |
6 Color (C,M,Y,K,Lc,Lm) |
|||
Capacity |
1L or 5L per Main Tank of Each Color |
|||
Ink Supply System |
Low Ink Dectector, Auto or Manual Ink Supply System |
|||
Media Type |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc. |
|||
Auto Media Feeding System |
Equipped (Max. Media Weight 80kg) |
|||
Auto Cleaning System |
Individual Positive Pressure Cleaning ,Anti-clogged Flash Function & Capping System |
|||
Pre-heating & Drying System |
Equipped |
|||
Clamp |
Equipped |
|||
Printhead Height |
2 to 6 mm from Media |
|||
Print Interface |
USB 2.0 |
|||
RIP Software |
Maintop, Ultraprint, Photoprint, Wasatch, Topaz |
|||
Input Power |
AC 220V, 50Hz/60Hz |
|||
Machine Dimension / N.W |
L4, 786 x W930 x H1,350mm / 724KG |
|||
Package Dimension / G.W |
L4, 980 x W1,140 x H1,640mm / 1064KG |
