UD-3208P（STOPPED）

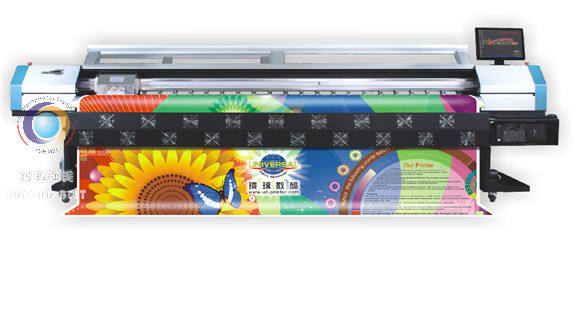

Phaeton solvent printer
|
Model |
UD-3208P |
|
|
Printhead |
SPT 510-35PL |
|
|
SII Printek Inc |
||
|
Number of Printhead |
8 Heads |
|
|
Number of Model |
SPT-510/35pl |
|
|
Printing Speed |
Printing mode |
Standard Output (m²/hr) |
|
Draft Model |
2PASS 76 m²/hr |
|
|
Standard Model |
3PASS 51 m²/hr |
|
|
Qualit Model |
4PASS 34 m²/hr |
|
|
High quality |
6PASS 26 m²/hr |
|
|
Maximum Printing Width |
3.200mm(125.984inch) |
|
|
Ink |
Type : |
Solvent Ink & ECO-Solvent Ink |
|
Color : |
Double 4 Colors(C,M,Y,K) |
|
|
Capacity : |
1L or 5L Per Main Tank of Each Color |
|
|
Ink Supply System : |
Low Ink Detector, Auto or Manual Ink Supply System |
|
|
Media |
Width : |
Maximum3,300mm(129.92’’) |
|
Type : |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc |
|
|
Roll Media or Sheet Media |
||
|
Thickness: |
4 mm(Max.) |
|
|
Heating System |
3 way intelligent heater |
|
|
Auto Media Feeding System |
Equipped(Max. Media Weight 80kg) |
|
|
Take-up System |
Equipped |
|
|
Auto Cleaning System |
Individual Positive Pressure Cleaning, |
|
|
Anti-Clogging Flash Function & Capping System |
||
|
Pre-heat & Dry System |
Equipped |
|
|
Clamp |
Equipped |
|
|
Printing Interface |
USB2.0 Cable |
|
|
Printhead Height |
2 to 6 mm from Media |
|
|
RIP Software |
Maintop(equip) , UltraPrint , PhotoPrint, Topaz, Wasatch,(optional) |
|
|
Input Power |
AC 220V, 50Hz / 60Hz |
|
|
Machine Dimension/N.W |
L4, 500 x W905 x H1,260mm / 348KG |
|
|
Package Dimension/G..W |
L4, 590 x W1,050 x H890mm / 591KG |
|
|
Operation Environment |
Temperature : 20°C~28°C Humidity : 40%~60% |
|
The Speed data is different in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different along after change printheads. When printing with serveal printers at the same time, printing colors may have difference due to a difference exist in every single printer.
