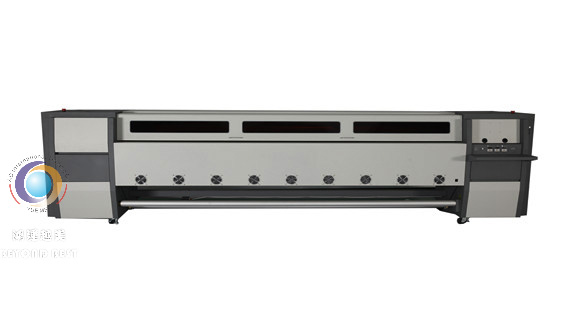

UD-3286E（STOPPED）
Phaeton solvent printer
|
MODEL |
UD-3286E |
||
|
Printhead |
SPT508GS |
||
|
SII Printek Inc. |
|||
|
Number of printhead |
4/6 Heads |
||
|
Output Quantity (m2/h) |
Print Mode |
Outputs(m2/h) |
|
|
Draft |
2Pass |
91 |
|
|
Standard |
3Pass |
61 |
|
|
Quality |
4Pass |
46 |
|
|
High Quality |
6Pass |
31 |
|
|
Back-lit |
8Pass |
23 |
|
|
Max. printing width |
3200mm |
||
|
Max. media width |
3300mm |
||
|
Ink |
Type |
Solvent or Eco-solvent |
|
|
Color |
(C,M,Y,K) or (C,M,Y,K,Lc,Lm) |
||
|
Volume |
2 liters main tank |
||
|
Ink supply system |
Ink level sensor. Auto-pumping |
||
|
Media |
Width |
3300mm |
|
|
Type |
Ceiling Film，Vinyl, Window Film, Polyester, Flex, Back-lit Film, PVC banner,etc |
||
|
Feeding System |
Single or double feeding bar. (Max weight 80kg) |
||
|
Ph. Cleaning System |
Individual color purging |
||
|
Heating System |
Back, middle, front, and extra heater. |
||
|
Clamp |
Equipped |
||
|
Printhead Height |
Adjustable distance from 2mm~6mm. |
||
|
Input Voltage |
AC220V，50Hz/60Hz |
||
|
Printer Dimension/Weight |
|||
|
Package Dimension/Weight |
L4980xW1140xH1620mm / 1011Kg |
||
The Speed data is different in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different along after change printheads. When printing with serveal printers at the same time, printing colors may have difference due to a difference exist in every single printer.
