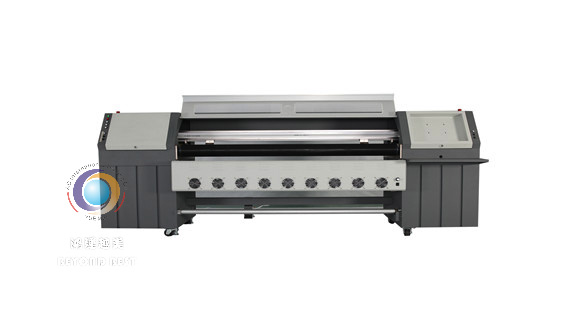

UD-1886MD（STOPPED）
Phaeton solvent printer
|
Model |
UD-1886MD |
|
|
Printhead |
SPT508GS |
|
|
Number of printhead |
6 Heads |
|
|
Maximum print width |
1,800mm |
|
|
Print Speed (m2/h) |
Print mode |
Standard output(m2/h) |
|
D |
2 PASS 91 |
|
|
S |
3 PASS 61 |
|
|
Q |
4 PASS 46 |
|
|
HQ |
4 PASS 31 |
|
|
BL |
8 PASS 23 |
|
|
Ink |
Type: |
ECO Solvent Ink |
|
Color : |
6 Color (C,M,Y,K,Lc,Lm) |
|
|
Capacity: |
2L per Main Tank of Each Color |
|
|
Ink Supply System |
Low Ink Detector, Auto or Manual Ink Supply System |
|
|
Media Width |
Maximum 1,844mm |
|
|
Media Type |
Vinyl, Window Flim, Polyester, Flex, Back-lit Film, etc. |
|
|
Auto Media Feeding System |
Equipped (Max. Media Weight 80kg) |
|
|
Auto Cleaning System |
Individual Positive Pressure Cleaning, Anti-clogged Flash Function & capping System |
|
|
Pre-heating & Drying System |
Equipped |
|
|
Clamp |
Equipped |
|
|
Print Interface |
USB 2.0 | USB 3.0 |
|
|
Printhead Height |
2 to 10 mm from Media |
|
|
RIP Software |
Ultraprint, Maintop, Photoprint |
|
|
Input Power |
AC 200V, 50Hz/60Hz |
|
|
Operating Environment |
Humidity: 20-80% (Recommend 40-60%) |
|
|
Temperature: 15-35°C |
||
|
Machine Dimension / N.W |
L3,380 x W930 x H1,340mm / 404KG |
|
|
Package Dimension / G.W |
L3,480 x W1,140 x H1,640mm / 485KG |
|
The Speed data is different in different computer.
Inkjet printer prints with fine ink dots, so the printing colors may be different along after change printheads. When printing with serveal printers at the same time, printing colors may have difference due to a difference exist in every single printer.
